Illini Drilled Foundations, Inc. has a full fleet of drilling equipment available, including Conventional Drilling Equipment and Limited Access Drilling Equipment, as well as additional equipment to handle countless situations and scenarios. No matter the machine, our commitment to quality and safety remain constant. We are constantly researching equipment productivity as well as innovations in drilling machinery.
Low Clearance Rigs
|

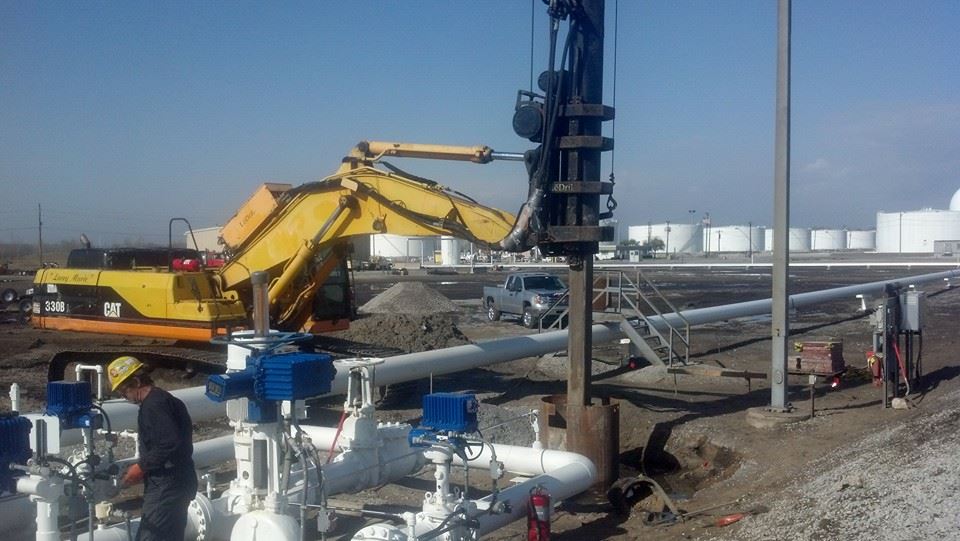

CAT 330 LoDrill
FEATURES: Heavy duty foundation drill mounted on an excavator. Easily drills in confined areas with limited overhead clearance SPECS: Kelly Performance: 50,000 ft/lbs of torque // 15,000 lbs of crowd Shaft Diameter: Up to 96" in diameter Digging Depth: Up to 45 ft deep |
|

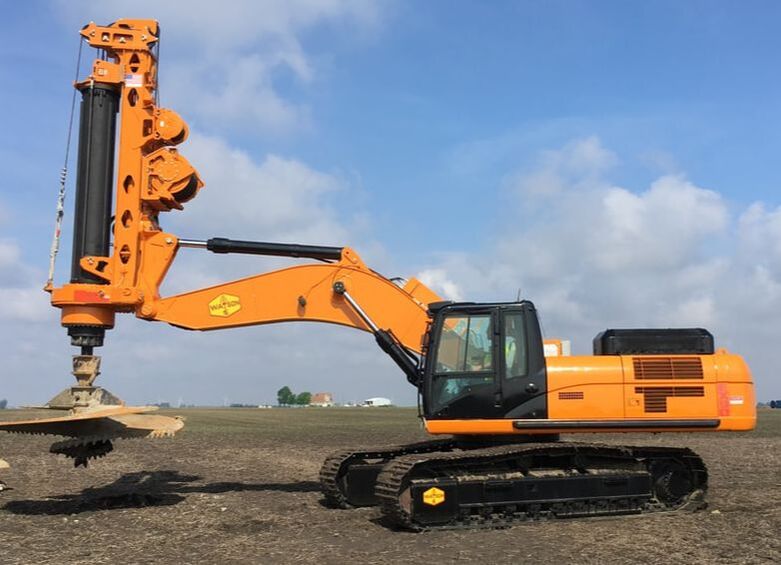

Watson Excadrill EX-90
FEATURES: Short boom height and farther reach capabilities make this machine ideally suited for many projects. SPECS: Kelly Performance: 60,000 ft/lbs of torque // 18,500 lbs of crowd Shaft Diameter: 18" to 10' Digging Depth: Up to 45 ft deep |
|

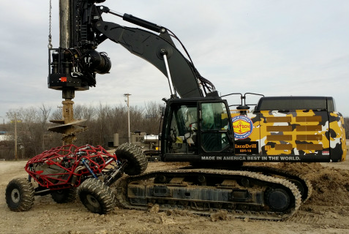

Watson Excadrill EDT-18
FEATURES: Heavy duty foundation drill mounted on an excavator. Easily drills in confined areas with limited overhead clearance SPECS: Kelly Performance: 180,000 ft/lbs or torque // Shaft Diameter: 18" to 16' Digging Depth: up to 60 ft deep |
|

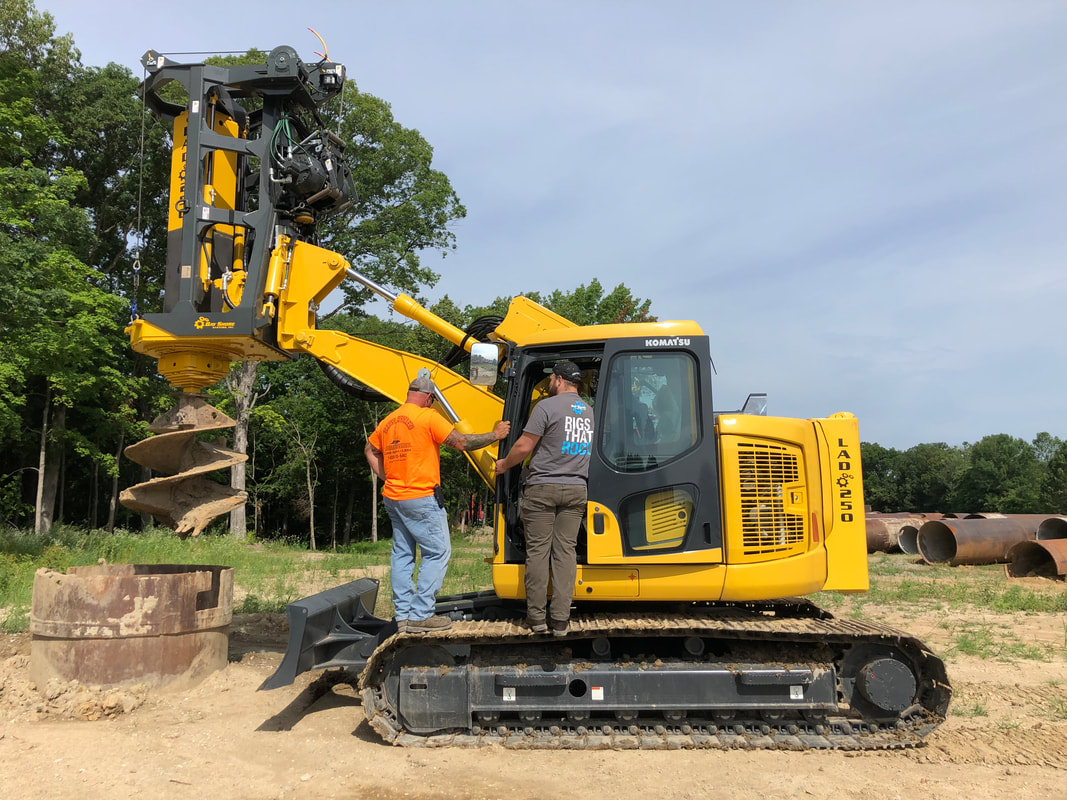

Komatsu PC 138 LoDrill
FEATURES: Heavy duty foundation drill mounted on an excavator. Easily drills in confined areas with limited overhead clearance SPECS: Kelly Performance: 50,000 ft/lbs of torque // 15,000 lbs of crowd Shaft Diameter: Up to 96" in diameter Digging Depth: Up to 45 ft deep |
Conventional Rigs
|

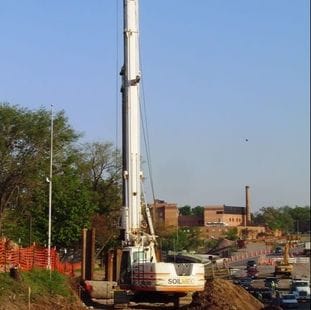

Soilmec 312HD
FEATURES: Track-mounted for easy access to hard-to-reach job sites, with swift set-up that easily converts for auger cast pile. SPECS: Kelly Performance: 92,000 ft/lbs of torque // 27,875 lbs of crowd Shaft Diameter: 18" to 12' in diameter Digging Depth: Up to 100 ft deep (2006) |
|

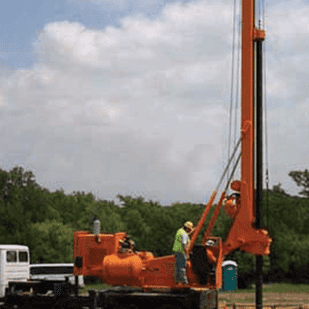

Watson 1100
FEATURES: Mounted on a truck for easy access and maneuverability. SPECS: Kelly Performance: 40,000 ft/lbs of torque // 20,000 lbs of crowd Shaft Diameter: 81" to 4' in diameter Digging Depth: Up to 60 ft deep |
|

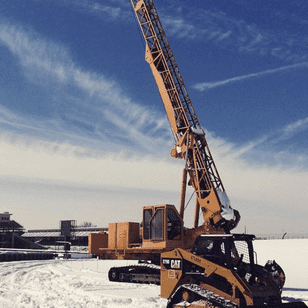

Watson 3110
FEATURES: Heavy duty rig handles difficult drilling situations, with a configuration for larger diameter shafts and rock drilling. Track mounted for easy access at hard-to-reach job sites. Light-weight configuration allows for easy mobility. SPECS: Kelly Performance: 113,000 ft/lbs of torque // 50,000 lbs of crowd Shaft Diameter: 18" to 10' in diameter Digging Depth: Up to 80 ft deep |
|
Soilmec SR-45
FEATURES: Track-mounted for easy access to hard-to-reach job sites. SPECS: Kelly Performance: 92,000 ft/lbs of torque // 27,875 lbs of crowd Shaft Diameter: 18" to 12' in diameter Digging Depth: Up to 100 ft deep (2006) |
Additional Equipment
In addition to our drilled shaft machinery, Illini Drilled Foundations hosts a variety of equipment which allows for work to be performed in countless situations and scenarios. This equipment includes:
|
Auger Cast Piles
Auger sections can be manufactured to accommodate installation of auger cast piles inside existing building with a minimum clearance of 7 to 10 feet. ADVANTAGES: Less Noise: Drilled and pumped (not driven), eliminating the hammer-impact noise No Objectionable Vibration: With no driven hammer, this allows the auger cast to install adjacent to existing structures, without damage to nearby structures or settlement. No Casing Required: During installation, the earth-filled auger maintains the shape of the pile hole during the drilling phase. The pressures produced by the grout pump during the withdrawal and grouting phase exceed the lateral pressures exerted by the soil, and while the grout is still fluid, the lateral pressures per foot of depth of the grout exceed those pressures per foot of depth of the soil. |

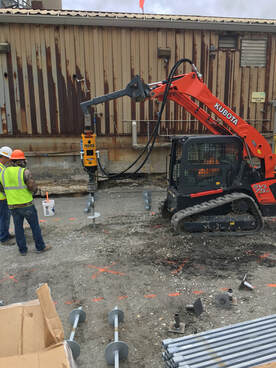

Helical Piles
Helical pile sections can be installed in areas with limited access or low overhead clearance—typically requiring as little as 7 to 10 feet—making them ideal for use inside existing building or confined spaces.
ADVANTAGES:
Less Noise: Helical piles are installed using torque-driven equipment rather than impact hammers, significantly reducing noise during installation.
No Objectionable Vibration: The installation process generates minimal to no vibration, making it safe for use near existing structures without risk of settlement or structural damage.
No Curing Time or Spoils: Helical piles are installed with minimal soil disturbance and produce no spoils. Since they are load-bearing immediately upon installation, there's no need for curing time— allowing for faster project progression.
